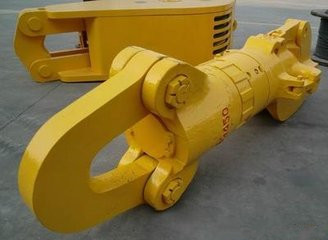

Hook
Product Detail
Technical Features
l Series travelling blocks conform to API Spec 8A, and are granted the right to use API monogram.
l Conform to industry standard SY/T5527.
l Special structure in main body with good buffer function.
l The master hook is equipped with double safety device.
l The main parts of Hooks are made of high-strength alloy steel, and passed non-destructive test.
Technical Parameters
Model | DG50 | DG100 | DG225 | DG315 | DG450 |
Max. Load, kN | 500 | 1000 | 2250 | 3150 | 4500 |
Spring travel, mm | 140 | 140 | 180 | 200 | 200 |
Opening size of master hook, mm | 130 | 140 | 190 | 220 | 220 |
Overall Dimensions (L*W*H) mm | 1660*522*500 | 1900*765*700 | 2548*780*750 | 2960*890*835 | 2960*890 8880 |
Weight, kg | 419 | 1310 | 2175 | 3430 | 3520 |
